$140.76

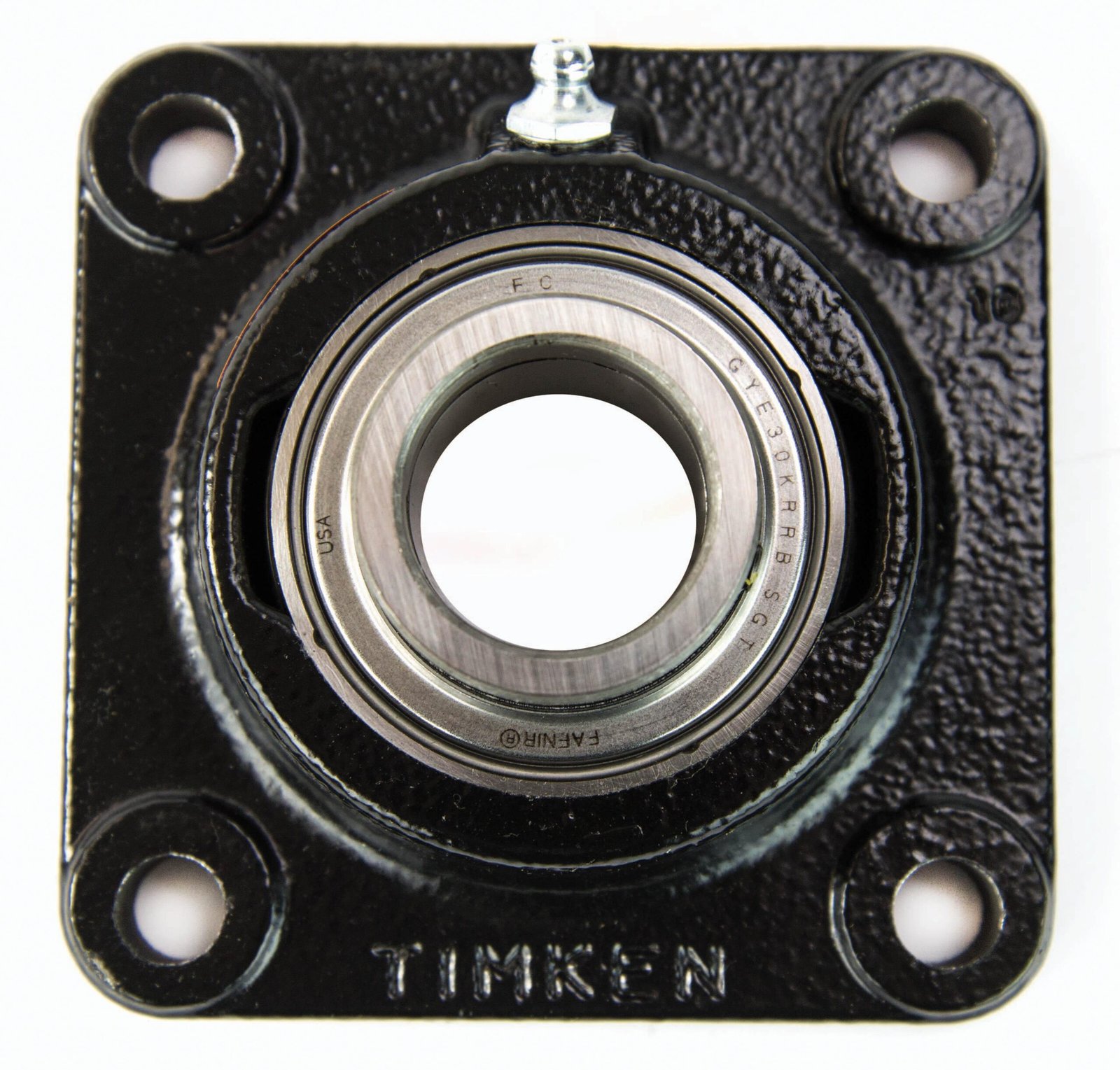

YCJM2 is a durable Timken component designed for reliable performance in demanding industrial applications. Built to handle heavy loads with long service life, it ensures dependable operation across varied mounting and system setups.
| Weight | 7.14 lbs |
|---|---|
| Bearing Number | GY1200KRRB |
| Seal Type | Shroud Seal |
| Housing Construction | Four-Bolt Square Flange |
| Dimension D | 4.752 in |
| Dimension E | 2.547 in |
| Dimension F | 2.747 in |
| Series | Medium-Duty |
| Shaft Size d | 2 in |
| Total Length L | 6.374 in |
| Housing Width A | 1.843 in |
| Bolt Hole Size N | 0.63 in |
| Flange Thickness A1 | 0.657 in |
| Center of Bearing from Housing End A2 | 1.236 in |
| Bolt Size | M16 |
| Static Load Rating | 6570 lbf |
| Dynamic Load Rating | 10800 lbf |
| Alternate Part Name | YCJ M2 |
| Inside Ring Width B | 2.187 in |
| Dimension S1 | 1.312 in |
| Bolt Hole Spacing | 5.126 in |
Fafnir® Four-Bolt Flanged Mounted Bearings Setscrew Locking Refer to the Specifications tab for dimensions, clearances, mounting options and compatible accessories.
