$32.78

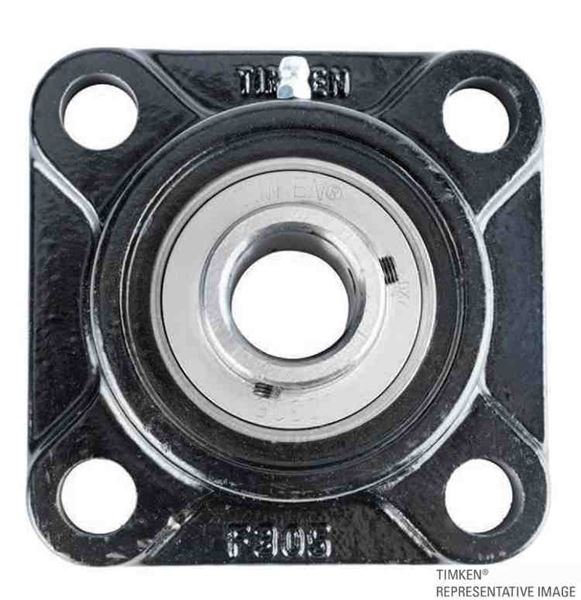

UCF205-15 is a durable Timken component designed for reliable performance in demanding industrial applications. Built to handle heavy loads with long service life, it ensures dependable operation across varied mounting and system setups.
| Weight | 1.8 lbs |
|---|---|
| UPC | 0087796140226 |
| Bearing Number | UC205-15 |
| Locking Style | Set Screw Locking |
| Housing Construction | Four-Bolt Square Flange |
| Shaft Size d | 15/16 in |
| Total Length L | 3.74 in |
| Housing Width A | 1.063 in |
| Bolt Hole Spacing J | 2.756 in |
| Bolt Hole Size N | 0.472 in |
| Flange Thickness A1 | 0.512 in |
| Center of Bearing from Housing End A2 | 0.63 in |
| Inner Ring Width B | 1.343 in |
| Center of Bearing from Bearing End S | 0.563 in |
| Dimension A0 | 1.406 in |
| Bolt Size | M10 |
| Grease Nipple Size | A-1/4-28UNF |
| Static Load Rating | 1765 lbf |
| Dynamic Load Rating | 3147 lbf |
Four-Bolt Flanged Mounted Bearings – Set Screw Locking Refer to the Specifications tab for dimensions, clearances, mounting options and compatible accessories.
