$3,813.89

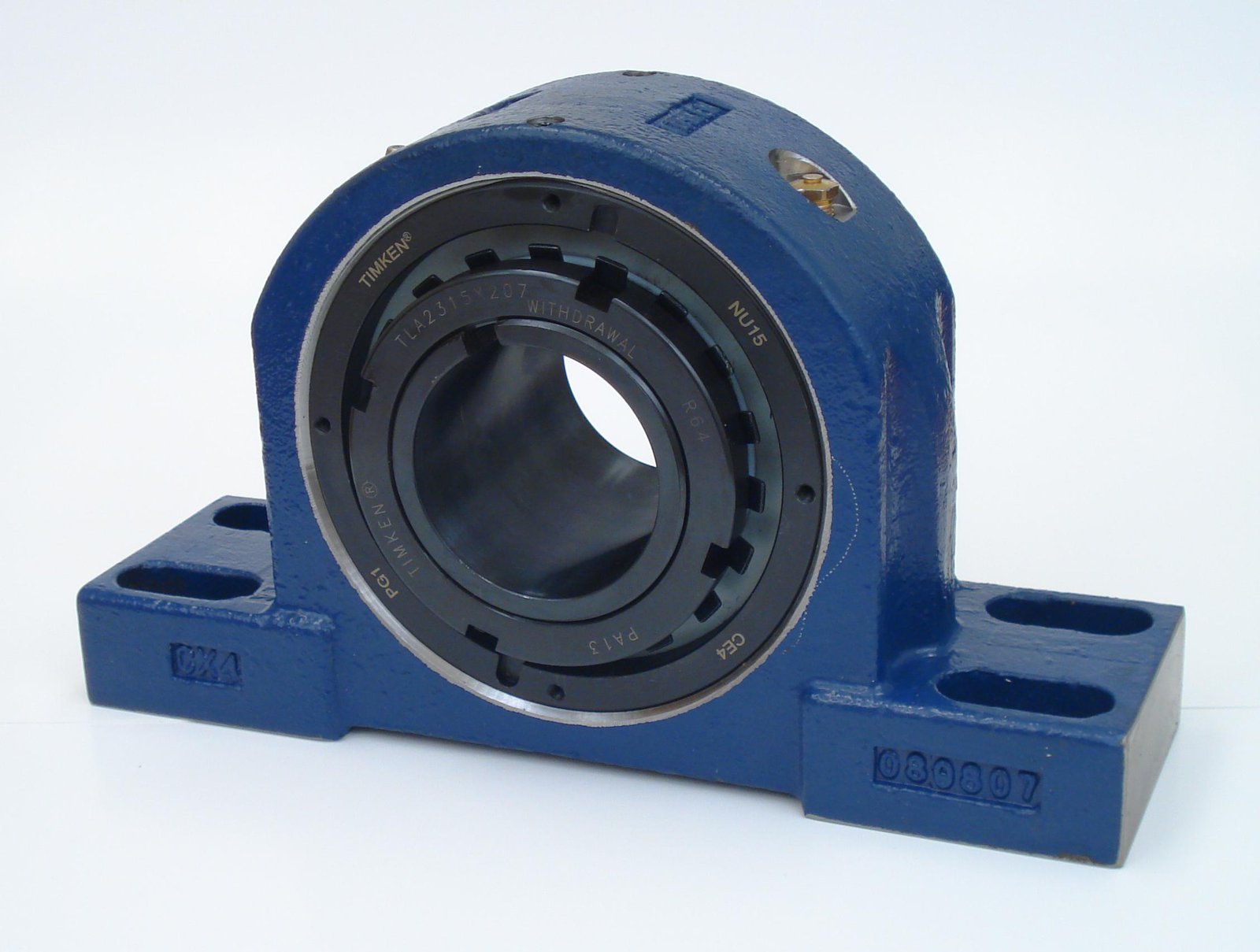

TAAPH32K507SO is a durable Timken component designed for reliable performance in demanding industrial applications. Built to handle heavy loads with long service life, it ensures dependable operation across varied mounting and system setups.
| Weight | 293.4 lbs |
|---|---|
| Shaft Size | 5 7/16 in |
| Dimension A | 6.69 in |
| Dimension B | 13 in |
| Shaft Size Type | Imperial |
| Dimension L | 6.94 in |
| Dimension H | 3 in |
| Bearing Number | 23132 |
| Engineering Group | Mounted Bearing |
| Locking Style | Double Nut Tapered Adapter |
| Housing Construction | Four-Bolt Pillow Block |
| Dimension C | 8.27 in |
| Dimension E | 3.75 in |
| Dimension F | 22 in |
| Dimension J (Bolt Size) | 1 in |
| C0 - Static Load | 354000 lbf |
| C - Dynamic Load (Basic) | 261000 lbf |
| e - Geometry Factor | 0.29 |
| Y1 - Geometry Factor | 2.33 |
| Y2 - Geometry Factor | 3.46 |
| Float | 0.083 in |
| Shaft Tolerance | 0.0050 in |
| Pre Install Clearance Min | 0.0071 in |
| Pre Install Clearance Max | 0.0091 in |
| Dimension D Min | 17.38 in |
| Dimension D Max | 19.25 in |
| Dimension G | 6.75 in |
| Dimension MT | 3.56 in |
| Dimension RTT | 0.47 in |
| Dimension ST | 7.28 in |
Double Nut Tapered Adapter Four-Bolt Pillow Block Refer to the Specifications tab for dimensions, clearances, mounting options and compatible accessories.
